Electrical |
|
|
Frequency Range |
865-868MHz |
|
Band width |
3MHz |
|
F/B Ratio |
≥20dB |
|
Gain |
9dBi |
|
V.S.W.R |
≤1.5 |
|
Radiation |
Direction |
|
Horizontal Beam width |
60° |
|
Vertical Beam width |
70° |
|
Polarization |
Circular or Linear |
|
Lightning Protection |
DC Grounded |
|
Maximum Input Power |
100W |
|
Impedance |
50Ώ |
|
Connector |
N Female |
|
Antenna Radome Material |
ABS |
|
Mount way |
Pole |
|
Diameter of Installation Pole |
Ø30~Ø50mm |
|
Mechanical |
|
|
Dimensions |
255x255x45mm |
|
Weight |
900g |
|
Operating Temperature |
-40℃ to+70℃ |
|
Rated Wind Velocity |
60m/s |
|
RoHS Compliant |
YES |

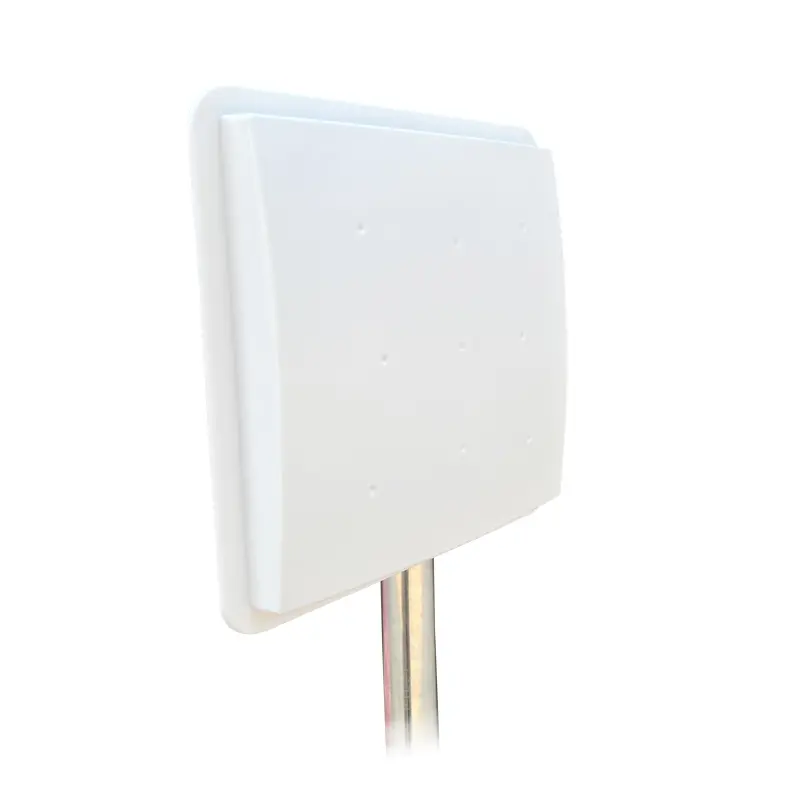

![RFID 9dBi Reader Panel 868MHz Antenna]()
